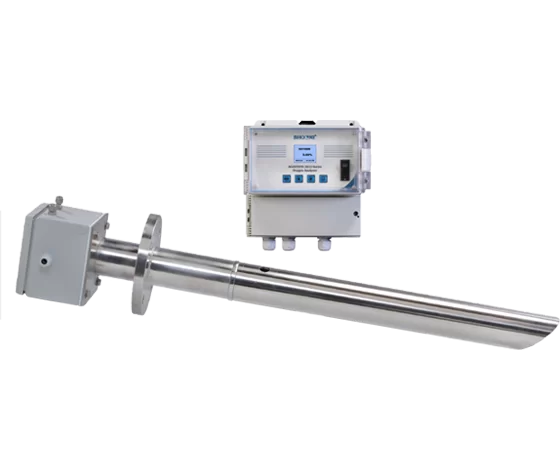

Insitu Zirconia Oxygen Analyzer BI 2100-S is designed for Combustion Process & Emission Monitoring where flue gas temperature is upto 700 deg C. It provides accurate measurement of excess oxygen in flue gas of combustion processes. Optimal combustion efficiency is achieved by maintaining the ideal level of oxygen in the flue gas.
BI 2100 is best solution for small boilers manufacturer with reasonable cost. It can be customize to integrate with various process & site conditions. With no moving parts or sampling apparatus, the analyzer is extremely reliable.
Zirconia sensor is very rugged & can withstand high temperature & pressure with life cycle more than 5 years.
Online calibration can be performed during operation. The available mode of calibration are Auto Cal. & Manual Cal.
BI 2100 series is field repairable. All active components can be replaced, including the filter, sensing cell & electronic card.
Insitu Oxygen Sensor Specification O2 Electronic Unit Specification
| Technology | Zirconia |
| Range | 0–100% O2 Programmable |
| Accuracy | ±0.5% of FS |
| Resolution | 0.01% |
| Repeatability | ±0.5% of FS |
| Response Time | T90 < 3 sec |
| Process Gas Temperature | 0 -700° C |
| Probe MOC | Stainless Steel |
| Diffusion Element | Unbreakable Ceramic. Sintered Steel filter as optional |
| O2 Probe Length | 250, 500, 750, 1000, 1500, 2000 mm |
| Flange | ANSI Cl. 150 3RF. Other Flanges on request |
| Reference Air | Clean & Dry Instrument quality air (2 LPM) |
| Area Classification | Safe Area. (Explosion Proof on request.) |
| Display | Keypad LCD Display |
| Power | 24 VDC. 230 V AC optional on request |
| Output | 4-20 mA Analog Output & 3 Nos. Relay Output |
| Digital Interface | RS 485, Modbus protocol |
| Ambient Temperature | 0 – 65° C |
| Mounting | Wall. Rack optional on request. |
| Enclosure Rating | IP65 |
| Calibration | Auto & Manual |
| Cable between Sensor & Electronic | 4 core, 25 meter |
