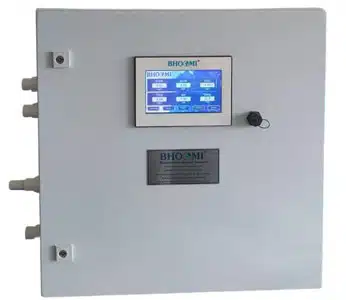

Online Continuous Effluent Monitoring System (TUV Certified)

The Online Continuous Effluent Monitoring System (TUV Certified) BI 1000 is designed to measure different water quality parameters such as COD, BOD, TOC, TSS, pH, NH3, TN, Chlorine and Oil in Water. Continuous, real-time data collection provides immediate insights into changing water conditions. All water quality sensor is digital sensor with RS485 Modbus interface. Upto 6 parameters can be measured. Here we provide with two type of measurement Insitu Type and Extractive type.

Features

  • Real-time water quality measurement.
  • All water quality sensor are digital sensor with RS485 Modbus interface.
  • Digital intelligent sensor can be arbitrarily combined, plug and play, and the controller can recognized automatically.
  • 7” touch screen display, easy to operate & interface.
  • Data logger function, all measured data will be recorded.
  • Multi-parameters water quality Analyzer is equipped with USB interface; user can download report in excel format.
  • Upto 9 parameters can be measured

Specifications

Technical Specification

Display 7” touchscreen display
Sensor Input RS485 Modbus
Power 230 VAC or 24 VDC
Digital Interface RS485 Modbus
Data Logging Through USB
Sensor IP Rating IP68
Controller IP Protection IP65
Electronic Enclosure Dimension 320 (L) x 270 (W) x 121 (H) mm
Cabinet Dimension 600 (H) x 600 (W) x 250 (D) mm
Parameters Range Resolution Accuracy Measurement Principle Sensor MOC
COD/BOD 0-500 mg/l, 0-1500 mg/L 0.01 mg/L ±5% UV Absorption 316L (custom titanium available)
TOC 0-180 mg/L, 0-600 mg/L 0.01 mg/L ±5% UV Absorption 316L (custom titanium available)
TSS 0-300 mg/l, 0-500 mg/l 0.01 mg/L ±5% IR Nepheolometry 316L (custom titanium available)
NH4 0-1000 mg/l ± 0.1 mg/l ± 2.5 % Ion Selective PP+PVC
pH 0-14 pH ± 0.01 pH ± 2% Electrochemical PP
Chlorine 0-2mg/L, 0-10mg/L, 0-20mg/L ± 0.1 mg/l ± 2% Potentiometric Glass+POM
Oil in Water 0-5ppm, 0-50ppm 0.01ppb ±3%F.S. Ultraviolet fluorescence 316L

Applications

  • Effluent Treatment Plant
  • Common Effluent Treatment Plant
  • Secondary water supply
  • Aquaculture Farming
  • River water quality monitoring
  • Environmental water discharge monitoring
  • Point source solution monitoring
  • Wastewater treatment works
  • Diffuse pollution monitoring
  • Groundwater water quality monitoring etc.
