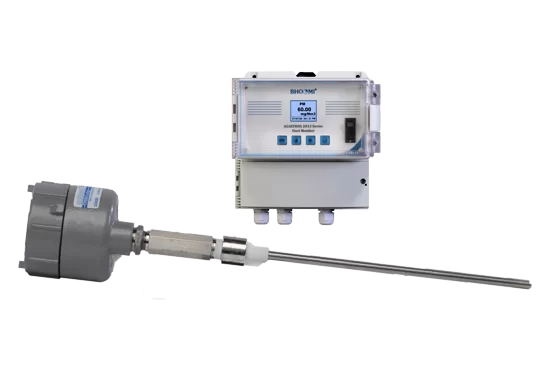

Triboelectric Dust Monitor is based on triboelectric principle where a probe is placed in the path of the emissions which are to be monitored. It is Particulate Leak Monitoring of Industrial Dust Collectors e.g. Baghouses and cyclones. It is simple to install and requires no setup or sensitivity adjustments.
The Triboelectric dust monitor is a cost effective choice for broken bag, leak detection and cyclone upset applications, easily installed and providing a rugged construction and robust monitoring technique.
| Measuring Range | 0-1000 mg/m³ |
| Units of measurement | mg/m³, mg/Nm³ |
| Accuracy | ±2% FSD |
| Resolution | 1mg/m³ display resolution |
| Stack Temperature | -20° to +121°C |
| Material of construction | SS 316 |
| Probe Insertion length | 300, 600, 900 mm |
| Positioning | 90° to duct wall |
| Power Supply | 24 VDC |
| Output | 4 – 20 mA Analog output |
| Digital Communication | RS 485, Modbus |
| Mounting | Wall |
| Electronic Unit Enclosure Rating | IP 65 |
| Cable Type | 3 core Interconnection Cable |
| Ambient Temperature | -20 to 50° C |
| Operating Humidity | 5 – 95% |
